CxNormalizedCorrelate
Advanced Analysis Library Only
AnalysisLibErrType CxNormalizedCorrelate (NIComplexNumber arrayX[], ssize_t sizeOfX, NIComplexNumber arrayY[], ssize_t sizeOfY, int algorithm, int normalization, NIComplexNumber outputArray[]);
Purpose
Finds the correlation of the complex input arrays. The cross correlation Rxy(t) of the sequences x(t) and y(t) is defined by the following equation:
where the symbol
denotes correlation.
The discrete implementation of this function is as follows. Let h represent a sequence whose indexing can be negative, let N be the number of elements in the input sequence arrayX, let M be the number of elements in the sequence arrayY, and assume that the indexed elements of arrayX and arrayY that lie outside their range are equal to zero, as shown by the following equations:
xj = 0, j < 0 or j ≥ N
and
yj = 0, j < 0 or j ≥ M.
Then CxNormalizedCorrelate obtains the elements of h using the following equation:
for j = -(N–1), -(N–2), ..., -1, 0, 1, ..., (M–2), (M–1)
The elements of the output sequence outputArray are related to the elements in the sequence h byRxyi = hi – (N–1)
for i = 0, 1, 2, ..., N+M–2.
Because you cannot index LabWindows/CVI arrays with negative numbers, the corresponding cross correlation value at t = 0 is the Nth element of the output sequence outputArray. Therefore, outputArray represents the correlation values that CxNormalizedCorrelate shifts N times in indexing.
In order to make the cross correlation calculation more accurate, normalization is required in some situations. This function provides biased and unbiased normalization.
-
Biased normalization
If normalization is ALGORITHM_CONCOR_BIASED_NORMALIZATION, LabWindows/CVI applies biased normalization as follows:
for j = 0, 1, 2, ..., M+N–2
where Rxy is the cross correlation between x and y with no normalization.
-
Unbiased normalization
If normalization is ALGORITHM_CONCOR_UNBIASED_NORMALIZATION, LabWindows/CVI applies unbiased normalization as follows:
for j = 0, 1, 2, ..., M+N–2

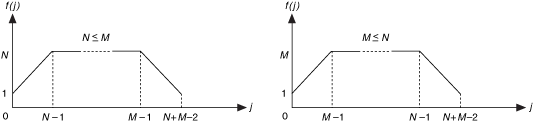

where Rxy is the cross correlation between x and y with no normalization. f(j) is:
 |
Note This function temporarily allocates memory for use as a work area. If CxNormalizedCorrelate cannot allocate memory, the function returns an error code. |
Parameters
| Input | ||||||||||||||
| Name | Type | Description | ||||||||||||
| arrayX | NIComplexNumber [] | First input array. | ||||||||||||
| sizeOfX | ssize_t | Number of elements in arrayX. | ||||||||||||
| arrayY | NIComplexNumber [] | Second input array. | ||||||||||||
| sizeOfY | ssize_t | Number of elements in arrayY. | ||||||||||||
| algorithm | int | Specifies the correlation method to use. algorithm must be one of the following values. Note that slight numerical differences can exist between the two methods.
|
||||||||||||
| normalization | int | Specifies the normalization method to use to compute the cross correlation between arrayX and arrayY. normalization must be one of the following values:
|
||||||||||||
| Output | ||||||||||||||
| Name | Type | Description | ||||||||||||
| outputArray | NIComplexNumber [] | The correlation of arrayX and arrayY. This array must be at least (n + m – 1) elements long. | ||||||||||||
Return Value
| Name | Type | Description |
| status | AnalysisLibErrType | A value that specifies the type of error that occurred. Refer to analysis.h for definitions of these constants. |
Additional Information
Library: Advanced Analysis Library
Include file: analysis.h
LabWindows/CVI compatibility: LabWindows/CVI 2012 and later
